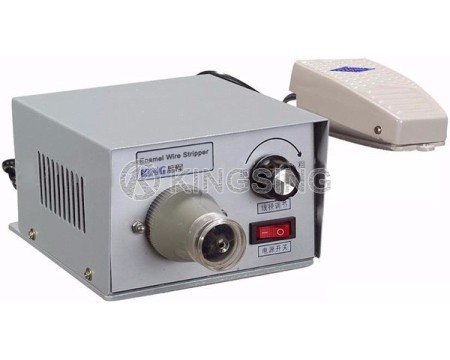

Enamel Wire Stripper

  • Model:KS-E509
  • Net. Weight:
  • Dimension:

The enamel wire stripper utilises four weighted tungsten carbide blades, this machine features a strip length stop which allows for consistent strip lengths, it also cleans and polishes leads of small electronic components and removes oxidation and other contaminants from leads as big as 4mm diameter.

Download: (1)

Wire Size: 0.5 - 4.0mm (one blade fits for all)
Stripping Length: 3 - 50mm
Speed Adjustment: stepless speed regulation
Power Supply: 220V / 50Hz
Power Rating: 100W
Net Weight: 6.0kg
Dimension: 270 × 170 × 130mm


  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
