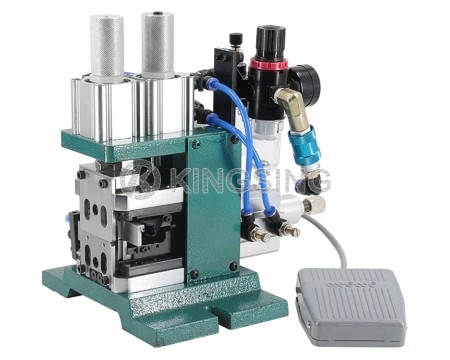

Pneumatic Sheathed Wire Stripping Machine

  • Model:KS-W413Series
  • Net. Weight:
  • Dimension:

This series of pneumatic stripping machines is specially designed for processing multi-core sheathed wires, including 3 sub-models (see technical parameters for details). There are 3 sets of blades built in the machine, the round blade is used for stripping the outer sheath, the flat blade is used for stripping the core wire, and the cutter is used for trimming the core wire. The stripping of the outer sheath and the core wire is completed at one time, which greatly improves the work efficiency. The function of trimming the core wire can ensure good consistency and accurate stripping length. One machine can process a variety of wires with different diameters, just change the corresponding blades.

Download: (1) (2)

KS-W413 Series Semi-automatic Wire Stripping Machine

Model

KS-W4131

KS-W4132

KS-W4133

Applicable diameter of wire outer jacket

35.5mm

38.5mm

313mm

Applicable stripping length of outer jacket

2040mm

2050mm

2090mm

Applicable diameter of core wire

Max.1.5mm²

Max.1.5mm²

Max.2mm²

Applicable stripping length of core wire

1.510mm

1.510mm

1.515mm

Power rating

150W

Net weight

21Kg

25Kg

49Kg

Dimension(L×W×H)

530×380×280mm

660×395×350mm

970×470×360mm

Power supply

AC220V 50/60Hz

Air pressure

0.50.7MPa

Operation temperature

040

Environment humidity

30%80%RH (No condensation at 40)

CE-Conformity:

KS-W413 Series fully complies with all CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
