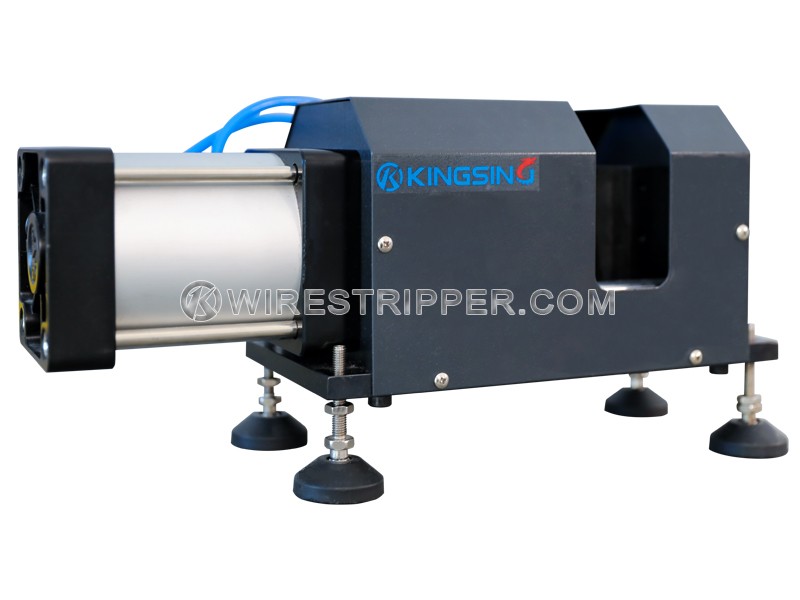

This machine is a pneumatic cable cutting machine, using compressed air as the main power.
After ventilation, the cylinder pushes blade unit to complete wire cutting process.
It is specially used for cutting various power cords, multiple strands of copper wires, large power cables, etc.
It has large force, smooth cut and easy to use.
In operation, the position where the cable needs to be cut should be aligned with the knife edge, and then press the foot switch to cut off cable.
The machine is without wire feeding function, so it is necessary to place the wire in the designated cutting position manually.
1. Easy to operate.
2. The cutting force is large and the incision is smooth.
3. Safe operation, fast cutting speed and high accuracy.
4. Pneumatic foot pedal switch design, no need electricity, it is more energy-efficient.
5. Desktop type with compact design, easy to move.
6. With overload protection function.
7. Low noise, low energy consumption, no pollution, cover a small area.
8. Small and beautiful shape, fast and high efficiency.
9. Low failure rate and easy maintenance.
10. It is equipped with protection devices.
|Name||Pneumatic Cable Cutting Machine|
|Available Material||Power Cords, Multiple Strands of Copper Wires, Large Power Cables, etc.|
|Air Pressure||0.5～0.8 MPa|
|Available Cable Size||0.1mm～50mm (Max. 120sqmm)|
